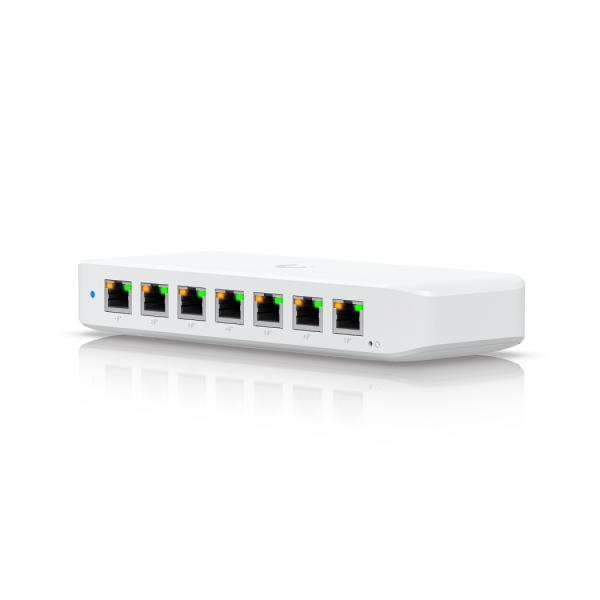

UniFi Switch Ultra 60W
UniFi Switch Ultra 60W
Out of stock
Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day
Couldn't load pickup availability
The UniFi Switch Ultra 60W is a powerful, compact Layer 2 switch specifically designed for maximum flexibility in small to medium-sized network environments. This 8-port Gigabit switch, of which 7 ports support PoE+, delivers an impressive combination of speed, efficiency, and versatility.
With 52W of PoE power available with the included AC adapter, devices such as IP cameras, access points, and VoIP phones can be easily powered without the need for additional power cables. The switch features an optional PoE++ input port, allowing it to be powered via PoE as well, adding flexibility for installation in areas where a power outlet is not readily available.
The rugged polycarbonate housing and the ability to easily mount it on the wall make this device perfect for any space where networking equipment needs to be installed. The UniFi Switch Ultra 60W not only offers powerful performance with a switching capacity of 16 Gbps and a forwarding rate of 11.904 Mpps, but also extensive security features such as storm control and port isolation.
With support for UniFi Network version 8.0.7 and later, this switch is the ideal choice for anyone looking for a reliable and scalable network infrastructure. Whether you have a small office, a store, or a home network, the UniFi Switch Ultra 60W offers the performance and reliability you need.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 52W PoE availability with included AC adapter
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
General
| Dimensions: | 203 x 76 x 33 mm |
| Weight: | Device: 320 g Wall mounting: 45 g 60W adapter: 330g |
| Housing material: | Polycarbonate |
Hardware
| Management interface: | Ethernet In-Band |
| Network interface: | (8) GbE RJ45 ports |
| PoE interface: | (7) PoE/PoE+ (pins 1, 2+; 3, 6-) |
| Total non-blocking throughput: | 8 Gbps |
| Switching capacity: | 16 Gbps |
| Feeding method: | (1) 54V, 1.1A power adapter (included) PoE++ (pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power supply: | 54V, external, 1.1A/60W |
| Supported voltage range: | 44—57 V DC |
| Max. power consumption: | 9W with PoE input (excluding PoE output) 8W with AC adapter input (excluding PoE output) |
| Total available PoE: | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202 W* *At operating temperature of 45°C. Reduced to 161W or 121W at 60°C |
| Max. PoE+ wattage per port via PSE: | 30W |
| Knob: | Factory reset |
| Ambient temperature during operation: | PoE++ input: -30 to 60° C 60W AC adapter input: -20 to 45° C 210W AC adapter input: -20 to 60°C |
| Ambient humidity during operation: | 10 to 90% non-condensing |
| Certifications: | CE, FCC, IC |
Switching functions, LEDs and application requirements
| Layer 2 features: | Gate insulation Storm control Gate mirroring Multicast/broadcast rate limit Flow control Jumbo frames Outgoing speed limit |
| Layer 3 features: | - |
| System: | Status |
| Ethernet: | PoE, link/activity |
| UniFi Network: | Version 8.0.7 and later |
Package contents
USW-Ultra-60W, mounting bracket, screw set.
