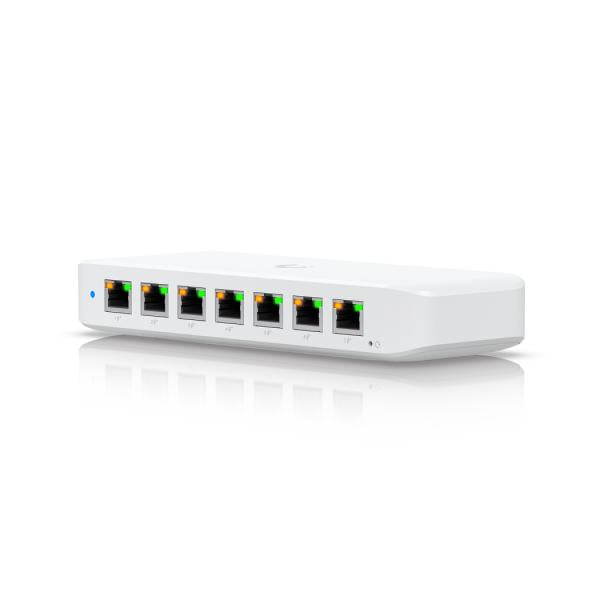

UniFi Switch Ultra 210W
UniFi Switch Ultra 210W
Regular price
€243,95 EUR
Regular price
Sale price
€243,95 EUR
Unit price
/
per
Taxes included.
Out of stock
Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day
Couldn't load pickup availability
A compact Layer 2, 8-port GbE PoE switch with versatile mounting options and a 210W AC adapter.
- (7) GbE PoE+ output ports
- (1) GbE port with optional PoE++ input*
- 202W PoE availability with included AC adapter
*PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.
General
| Dimensions: | 203 x 76 x 33 mm |
| Weight: | Device: 320 g Wall mounting: 45 g 210W adapter: 770g |
| Housing material: | Polycarbonate |
Hardware
| Management interface: | Ethernet In-Band |
| Network interface: | (8) GbE RJ45 ports |
| PoE interface: | (7) PoE/PoE+ (pins 1, 2+; 3, 6-) (1) PoE++ (pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput: | 8 Gbps |
| Switching capacity: | 16 Gbps |
| Feeding method: | (1) 54V, 3.9A power adapter (included) PoE++ (pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) |
| Power supply: | 54V, external, 3.9A/210W |
| Power supply: | 44—57V DC |
| Max. power consumption: | 9W with PoE input (excluding PoE output) 8W with AC adapter input (excluding PoE output) |
| Total available PoE: | PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202 W* |
| Max. PoE+ wattage per port via PSE: | 30W |
| Knob: | Factory reset |
| Ambient temperature during operation: | PoE++ input: -30 to 60 C 60W AC adapter input: -20 to 45 C 210W AC adapter input: -20 to 60 CC |
| Ambient humidity during operation: | 10 to 90% non-condensing |
| Certifications: | CE, FCC, IC |
Switching functions, LEDs and application requirements
| Layer 2 features: | Gate insulation Storm control Gate mirroring Multicast/broadcast rate limit Flow control Jumbo frames Outgoing speed limit |
| Layer 3 features: | – |
| System: | Status |
| Ethernet: | PoE Link/activity |
| UniFi Network: | Version 8.0.7 and later |
Package contents
USW-Ultra-210W, mounting bracket, screws kit.
