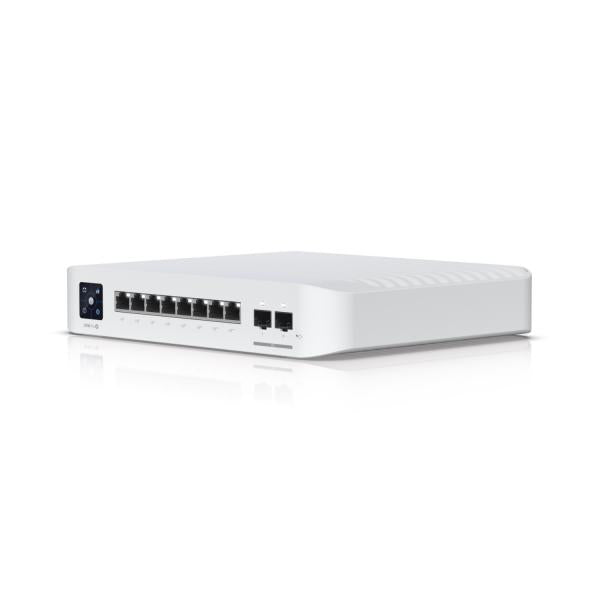

UniFi Switch Professional 8 PoE
UniFi Switch Professional 8 PoE
Regular price
€368,95 EUR
Regular price
Sale price
€368,95 EUR
Unit price
/
per
Taxes included.
25 in stock
Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day
Couldn't load pickup availability
8-port, Layer 3 switch with PoE+ and PoE++ output.
- (6) GbE PoE+ ports
- (2) GbE PoE++ ports
- (2) 10G SFP+ ports
- 120W PoE power
General
| Dimensions: | 200 x 248 x 44 mm |
| Weight: | 2.1 kg |
| Housing materials: | Plastic, metal |
| Mounting material: | Plastic |
Hardware
| Management interface: | Ethernet In-Band |
| Network interface: | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
| PoE interface: | (6) PoE/PoE+ (pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput: | 28 Gbps |
| Switching capacity: | 56 Gbps |
| Power Method: | Universal input, 100-240V AC, max. 2A |
| Power supply: | AC/DC, internal |
| Supported voltage range: | 100-240V AC |
| Max. power consumption: | 30W (excluding PoE output) |
| Total available PoE: | 120W |
| Max PoE wattage per port via PSE: | PoE: 15W PoE+: 30W PoE++: 60W |
| PoE mode voltage range: | PoE: 44-57V PoE+: 50-7V PoE++: 50-57V |
| LCM display: | (1) 1.3" touchscreen |
| LEDs: | RJ45 Ports: Link/Activity |
| Knob: | Restore factory settings |
| Working temperature: | -5 to 45 C |
| Max. humidity level: | 10 to 90% non-condensing |
| Certifications: | CE, FCC, IC |
Application requirements
| UniFi Network: | Version 7.5.176 and later |
Contents of the package
USW-Pro-8-PoE, Mounting kit, Screw set, Power cord.
