UniFi Switch Lite - 8 Port 52W PoE
UniFi Switch Lite - 8 Port 52W PoE
50 in stock
Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day
Couldn't load pickup availability

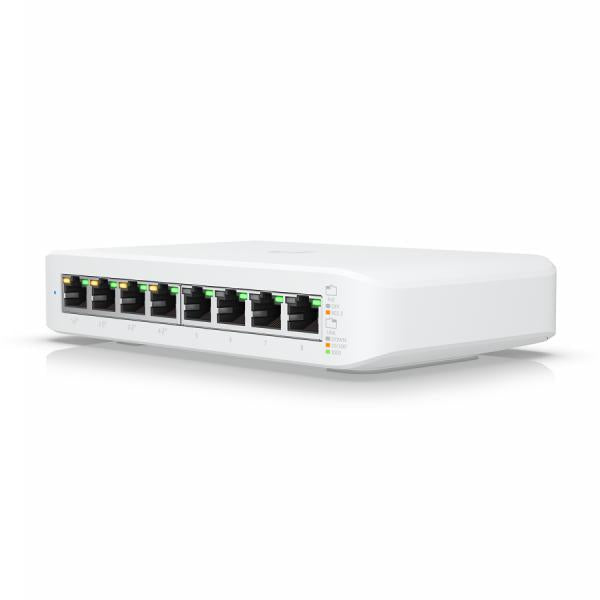

Layer 2, PoE switch with (8) GbE RJ45 ports, including (4) 802.3at PoE+ ports.
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ which provides up to 52W of total PoE wattage for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switch protocols and features. With the UniFi Network Controller and mobile app, administrators can configure and monitor virtually all switch functions in a graphical user interface from anywhere.
- (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
- Managed by UniFi Controller (5.13.10 or later)
- External 60W power adapter
- Wall mounting (kit included)
Specifications
| Dimensions: | 99.6 x 163.7 x 31.7 mm |
| Weight: | 450 g |
| Total Non-Blocking Line Rate: | 8 Gbps |
| Max Power Consumption: | 8W |
| Power Method: | 54VDC, 1.1A Power Adapter |
| Power supply: | External 54V/60W Power Adapter |
| Supported voltage range: | DC 50V to 57V |
| Network interface: | (8) 10/100/1000 Mbps Ethernet RJ45 Ports |
| PoE interfaces: | (4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Management interfaces: | Ethernet In-Band |
| Maximum PoE+ Wattage per port per PSE: | 30W |
| Modes: | SMB Layer 2 PoE Gigabit Ethernet Switch |
| Working temperature: | -15 to 40 C |
| Max. humidity level: | 10 - 90% Noncondensing |
| Certifications: | CE, FCC, IC |
Led
| System: | (1) Power, Blue/White, Flashing White: Bootup in Progress, Flashing Blue: Firmware Upgrading, Steady White: Factory Defaults, Awaiting Adoption, Steady Blue: Device is Adopted, |
| Ethernet: | Green: 1G, Amber: 10/100 Mbps |
| PoE: | Amber: IEEE 802.3af/at |
Package contents
USW-Lite-8-POE, Screw set, Mounting kit, Power supply.
