UniFi Switch Flex XG

UniFi Switch Flex XG

€323,95 EUR
€323,95 EUR
Sale Sold out
Taxes included.

Low stock: 3 left

Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

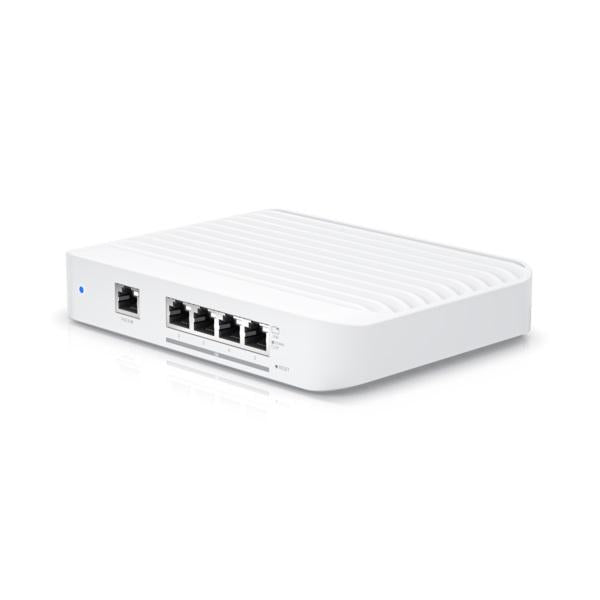

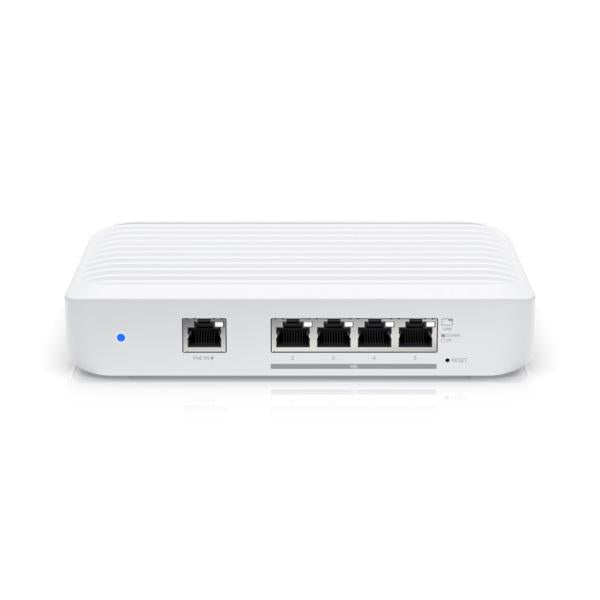

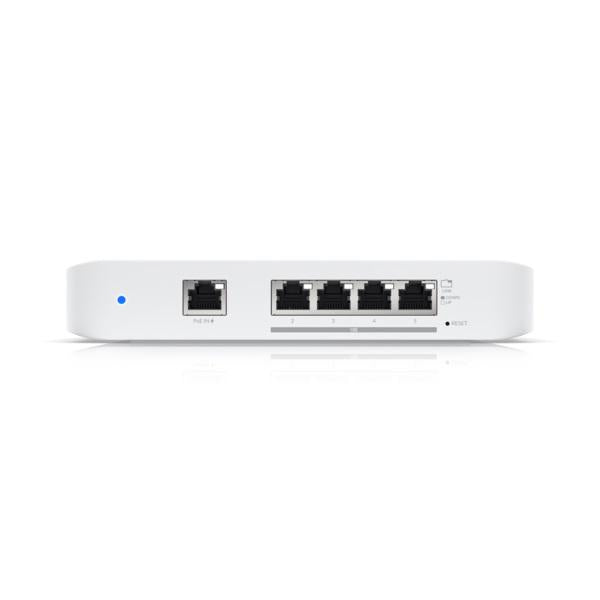

The Switch Flex XG (USW-Flex-XG) is a fully managed, multi-gigabit Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input.

The USW Flex XG has a sleek, compact chassis and can be mounted on a desktop. This switch can also be monitored or configured from anywhere using the powerful, intuitive UniFi Network web and mobile applications.

  1. (1) GbE, 802.3at PoE+ RJ45 input
  2. (4) 10GbE RJ45 ports
  3. Compact, slim housing
  4. Can be powered by a 5V, 5A USB-C adapter


General
Dimensions: 135 x 185 x 32 mm
Weight: 1.2 kg
Casing material Polycarbonate


Hardware
Total Non-Blocking Throughput: 41 Gbps
Switching Capacity: 82 Gbps
Throughput speed: 61,012 Mpps
Max Power Consumption: 25W
Power Method: (1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A
Power supply: 802.3at PoE
(Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC Power Adapter,
5VDC, 5A, 1.5m Cord (Included)
Supported voltage range: 90 to 264VAC (Adapter)
Management interfaces: Ethernet In-Band
Network interface: (1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Services SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection Air: +/- 16 kV, Contact: +/-12 kV
Buttons Reset
Working temperature: -5 to 45 C
Max. humidity level: 10 - 90% Non-condensing
Certifications: CE, FCC, IC


LEDs
System (1) Power supply, blue/white
White flashing: booting in progress
Blue flashing: firmware upgrade
Solid white: Factory defaults, Pending approval
Solid blue: device is approved
Ethernet White: link or activity

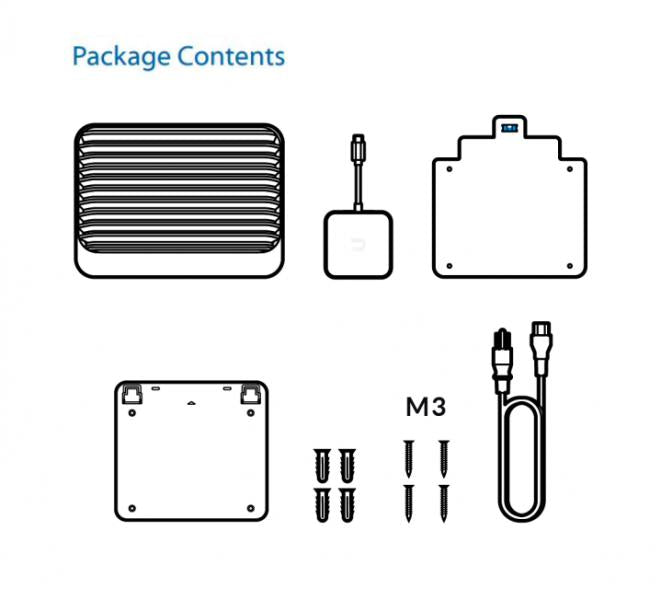

Contents of the package

USW-Flex-XG, Mounting kit, Screw set, 5V, 5A USB-C Adapter, Power cable, Manual.
