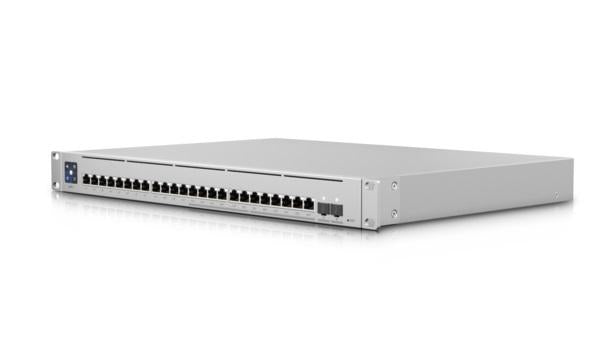

UniFi Switch Enterprise 24 PoE, 400W PoE budget
UniFi Switch Enterprise 24 PoE, 400W PoE budget
Couldn't load pickup availability
Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a managed Layer-3 switch with 400W PoE budget. The USW Enterprise 24 PoE has a 1.3" LCM color display with information about the connections and status updates.
The USW Enterprise 24 PoE features an advanced failover power system when connected to the USP-RPS (sold separately). This switch can be managed from anywhere in the world using the powerful and intuitive UniFi Network application or mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (12) GbE, 802.3at PoE+ RJ45 ports
- (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W PoE budget
- Layer 3 switching options
- Horizontal RJ45 port layout for easy patch cable management
Management via UniFi Network application: Version 5.14.12 or later required
General
| Dimensions: | 442.4 x 43.7 x 325 mm |
| Weight: With bracket |
5.11 kg 5.2 kg |
| Enclosure Materials | SGCC Steel |
| Mount Material | SGCC Steel |
Hardware
| Total Non-Blocking Throughput | 62 Gbps |
| Switching Capacity: | 124 Gbps |
| Forwarding Rate | 92.25 Mpps |
| Max Power Consumption: | 550W |
| Power Method: | (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A |
| Power Supply: | AC/DC, Internal, 550W |
| Management interface: | Ethernet In-Band |
| Network Interface: | (12) 10/100/1000 Mbps RJ45 Ethernet (12) 100/1000/2500 Mbps RJ45 Ethernet |
| SFP+ Interface | (2) 1/10G SFP+ |
| PoE Interface | (24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3af Mode | 44 to 57V |
| Voltage Range 802.3at Mode | 50 to 57V |
| Services | SMB Layer 3 PoE Gigabit Ethernet Switch |
| ESD/EMP Protection | Air: +/- 16 kV, Contact: +/- 12 kV |
| Working temperature: | -5 to 40 C |
| Max. humidity level: | 10 - 95% Noncondensing |
| Certifications: | CE, FCC, IC |
LEDs
| System | (1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted |
| Ethernet | White: Link or Activity |
| SFP+ | White: Link or Activity |
Package contents
USW-Enterprise-24-PoE, Rack ears (2), Screw set, Power cord.
