Ubiquiti
UniFi Switch Flex Mini 2.5G
UniFi Switch Flex Mini 2.5G
13 in stock
Standard fast delivery for all packages: orders placed before 1:30 PM will be shipped the same working day
Couldn't load pickup availability

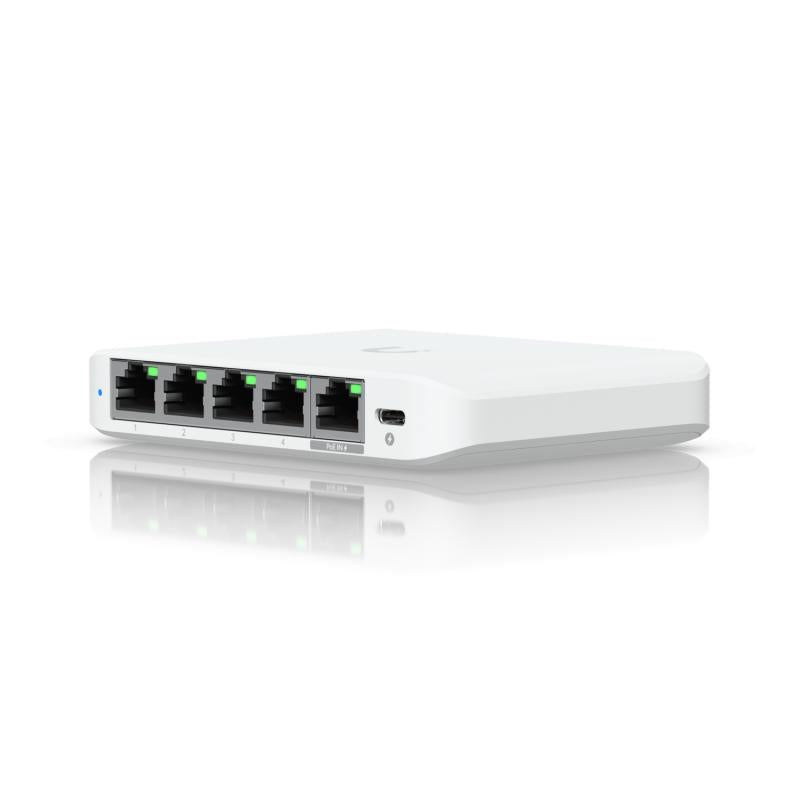

Compact 5-port 2.5G switch that can be powered via PoE or a USB-C adapter.
The UniFi Switch Flex Mini 2.5G is a compact yet powerful networking solution designed to enhance connectivity in small environments. The device features five 2.5GbE RJ45 ports, including one PoE input port that allows the switch to be powered via Power over Ethernet, reducing the need for additional power adapters. Alternatively, the switch can be powered using the included 5V, 1A USB-C adapter, providing flexible power options. With its polycarbonate housing, the switch is durable and lightweight, making it easy to install in a variety of environments.

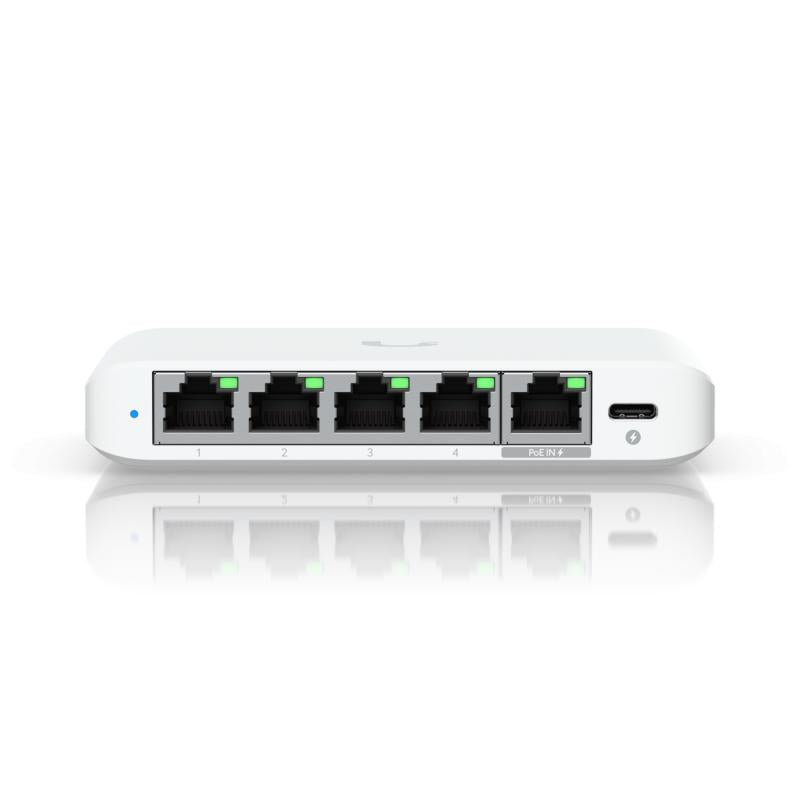

- (4) 2.5 GbE ports
- (1) 2.5 GbE PoE power input port
- Optional power supply with included 5V, 1A USB-C adapter
Mechanical
| Dimensions: | 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
| Weight: | 206 g (7.3 oz) |
| Housing material: | Polycarbonate |
Hardware
| Management interface: | Ethernet In-Band |
| Network interface: | (5) 1/2.5 GbE RJ45 ports |
| Total non-blocking throughput: | 12.5 Gbps |
| Switching capacity: | 25 Gbps |
| Forwarding rate: | 18.6 Mpps |
| Feeding method: | (1) AC power adapter, 5V DC, 1A (1) PoE (PairA 1, 2+; 3, 6-) (PairB 4, 5+; 7, 8-) |
| Power adapter: | External AC/DC adapter UniFi PoE switch |
| Supported voltage range: | AC/DC input: 5V DC PoE input: 44-57V DC |
| Max. power consumption: | AC/DC input: 5W PoE input: 6.4W |
| Knob: | Factory reset |
| Ambient temperature: | -20 to 45°C (-4 to 113°F) |
| Ambient humidity: | 10 to 90% non-condensing |
| Certifications: | CE, FCC, IC |
Switching functions
| Layer 2 features: | STP/RSTP with priorities and port disabling Gate insulation Storm control Port mirroring Multicast/broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features: | – |
LEDs
| System: | (1) Blue/white: current Blinking white: booting in progress Blinking Blue: Upgrading Firmware Steady white: factory settings; device waiting for adoption Steady blue: device is adopted |
| Ethernet: | (5) Green: connection/activity |
Application Requirements
| UniFi Network: | Version 8.4.62 and later |
Package contents
USW-Flex, EU power plug
